IMX10B6HV0375M EP7020
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

682970

ANSI

IMX10B6HV0375M EP7020

ISO

IMX10B6HV0375M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)

94

Regular price $159.84 USD
Regular price Sale price $159.84 USD
Sale

EDP

682970

ANSI

IMX10B6HV0375M EP7020

ISO

IMX10B6HV0375M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
IMX10B6HV0375M EP7020
Coolant
External
Hand
Right

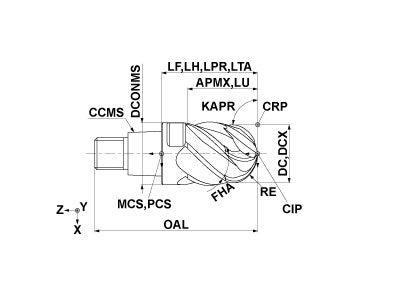

Unit: inch

DC
0.375
APMX
0.395
LU
0.395
LH
0.63
OAL
1.146
DCONMS
0.363
RE
0.1875
FHA
45.0
ZEFP
6
ZEFF
6
IMX10B6HV0375M EP7020

Unit: inch

DC
0.375
APMX
0.395
LU
0.395
LH
0.63
OAL
1.146
DCONMS
0.363
RE
0.1875
FHA
45.0
ZEFP
6
ZEFF
6
