diaedge
IMX12B6HV0500M EP7020
Skip to product information

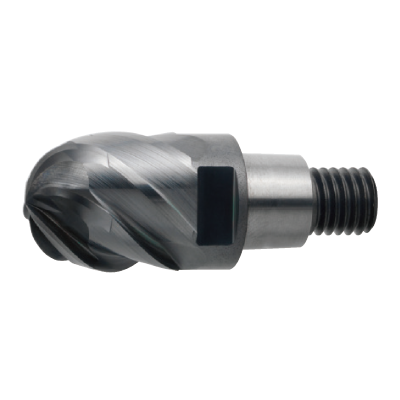

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

682988

ANSI

IMX12B6HV0500M EP7020

ISO

IMX12B6HV0500M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)

131

Regular price $202.06 USD
Regular price Sale price $202.06 USD
Sale

EDP

682988

ANSI

IMX12B6HV0500M EP7020

ISO

IMX12B6HV0500M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
IMX12B6HV0500M EP7020
Coolant
External
Hand
Right

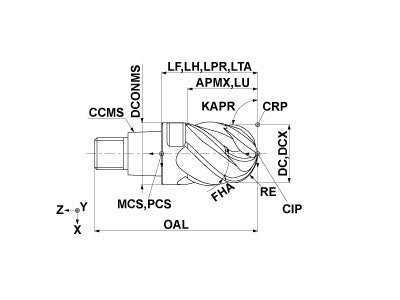

Unit: inch

DC
0.5
APMX
0.52
LU
0.52
LH
0.789
OAL
1.368
DCONMS
0.488
RE
0.25
FHA
45.0
ZEFP
6
ZEFF
6

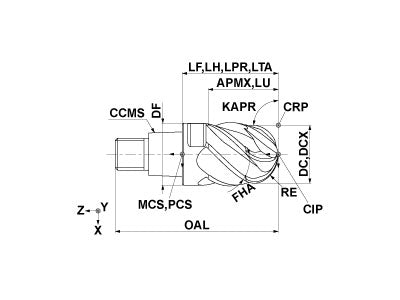

IMX12B6HV0500M EP7020

Unit: inch

DC
0.5
APMX
0.52
LU
0.52
LH
0.789
OAL
1.368
DCONMS
0.488
RE
0.25
FHA
45.0
ZEFP
6
ZEFF
6
