IMX25B6HV1000M EP7020
Skip to product information

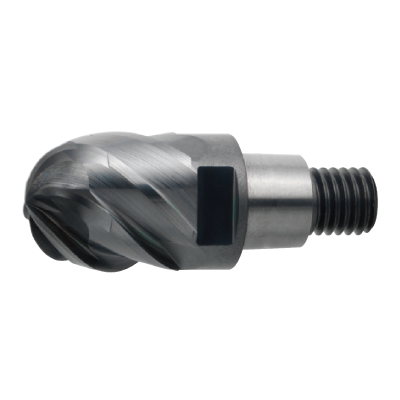

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

683016

ANSI

IMX25B6HV1000M EP7020

ISO

IMX25B6HV1000M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)

12

Regular price $470.44 USD
Regular price Sale price $470.44 USD
Sale

EDP

683016

ANSI

IMX25B6HV1000M EP7020

ISO

IMX25B6HV1000M EP7020

P (Steel) M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

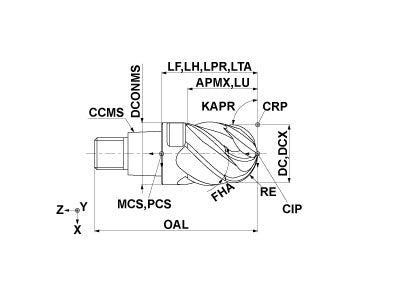

  • Drawings
  • Technical Information
IMX25B6HV1000M EP7020
Coolant
External
Hand
Right

Unit: inch

DC
1
APMX
1.05
LU
1.05
LH
1.5
OAL
2.494
DCONMS
0.98
RE
0.5
FHA
45.0
ZEFP
6
ZEFF
6
IMX25B6HV1000M EP7020

Unit: inch

DC
1
APMX
1.05
LU
1.05
LH
1.5
OAL
2.494
DCONMS
0.98
RE
0.5
FHA
45.0
ZEFP
6
ZEFF
6
