diaedge
GY2G0300F020N-MF RT9010
Skip to product information

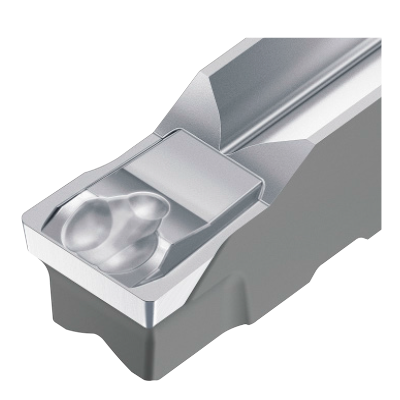

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

686647

ANSI

GY2G0300F020N-MF RT9010

ISO

GY2G0300F020N-MF RT9010

N (Non-Ferrous) S (Heat-Resistant)

40

Regular price $29.51 USD
Regular price Sale price $29.51 USD
Sale

EDP

686647

ANSI

GY2G0300F020N-MF RT9010

ISO

GY2G0300F020N-MF RT9010

N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions

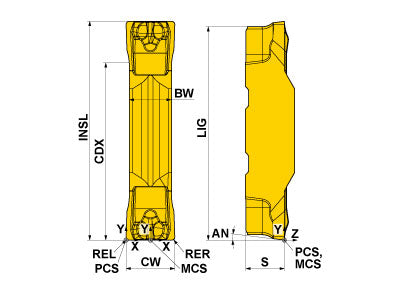

  • Drawings
  • Technical Information
GY2G0300F020N-MF RT9010
Hand
Neutral

Unit: mm

CW
3
REL
0.2
RER
0.2
CDX
19.5
CWTOLL
-0.02
CWTOLU
0.02
S
4.35
GY2G0300F020N-MF RT9010

Unit: mm

CW
3
REL
0.2
RER
0.2
CDX
19.5
CWTOLL
-0.02
CWTOLU
0.02
S
4.35
