EDP

686680

ANSI

GY2G0300F040N-MF RT9010

ISO

GY2G0300F040N-MF RT9010

N (Non-Ferrous) S (Heat-Resistant)

30

Regular price $29.51 USD
Regular price Sale price $29.51 USD
Sale

EDP

686680

ANSI

GY2G0300F040N-MF RT9010

ISO

GY2G0300F040N-MF RT9010

N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions

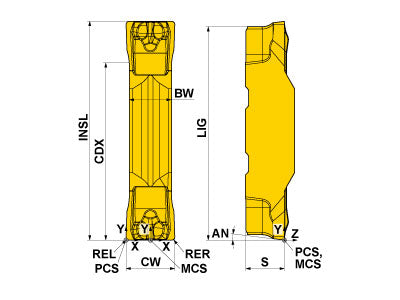

  • Drawings
  • Technical Information
GY2G0300F040N-MF RT9010
Hand
Neutral

Unit: mm

CW
3
REL
0.4
RER
0.4
CDX
19.3
CWTOLL
-0.02
CWTOLU
0.02
S
4.35
GY2G0300F040N-MF RT9010

Unit: mm

CW
3
REL
0.4
RER
0.4
CDX
19.3
CWTOLL
-0.02
CWTOLU
0.02
S
4.35
