VQJHVD3/16
Skip to product information

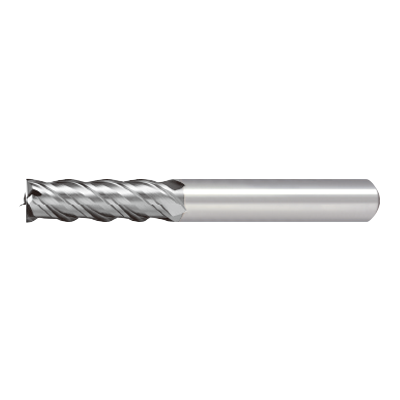

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

690937

ANSI

VQJHV/3/16

ISO

VQJHVD3/16

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

112

Regular price $97.16 USD
Regular price Sale price $97.16 USD
Sale

EDP

690937

ANSI

VQJHV/3/16

ISO

VQJHVD3/16

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

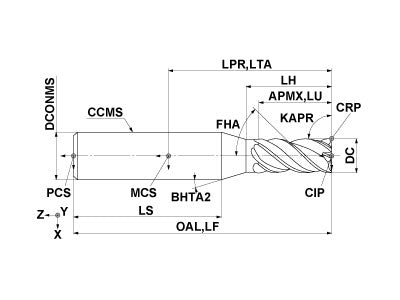

  • Drawings
  • Technical Information
VQJHVD3/16
Coolant
External
Hand
Right

Unit: inch

DC
0.1875
APMX
0.75
LU
0.75
LH
0.797
OAL
2.5
DCONMS
0.25
BHTA2
15
FHA
40.0
ZEFP
4
ZEFF
4
VQJHVD3/16

Unit: inch

DC
0.1875
APMX
0.75
LU
0.75
LH
0.797
OAL
2.5
DCONMS
0.25
BHTA2
15
FHA
40.0
ZEFP
4
ZEFF
4
