diaedge
VQJHVD1/4
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

690945

ANSI

VQJHV/1/4

ISO

VQJHVD1/4

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

121

Regular price $108.66 USD
Regular price Sale price $108.66 USD
Sale

EDP

690945

ANSI

VQJHV/1/4

ISO

VQJHVD1/4

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

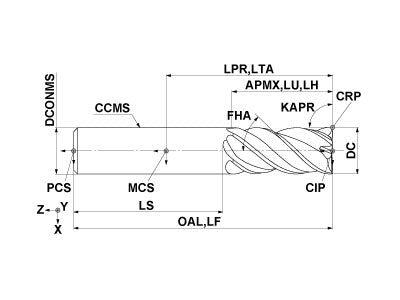

  • Drawings
  • Technical Information

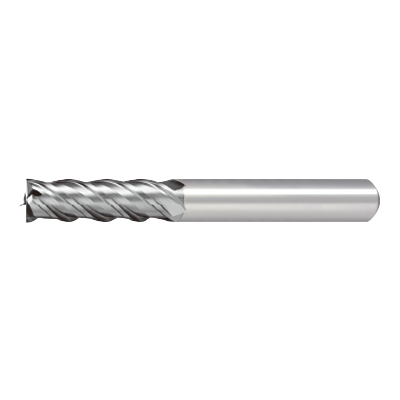

VQJHVD1/4
Coolant
External
Hand
Right

Unit: inch

DC
0.25
APMX
1
LU
1
LH
1
OAL
2.5
DCONMS
0.25
FHA
40.0
ZEFP
4
ZEFF
4
VQJHVD1/4

Unit: inch

DC
0.25
APMX
1
LU
1
LH
1
OAL
2.5
DCONMS
0.25
FHA
40.0
ZEFP
4
ZEFF
4
