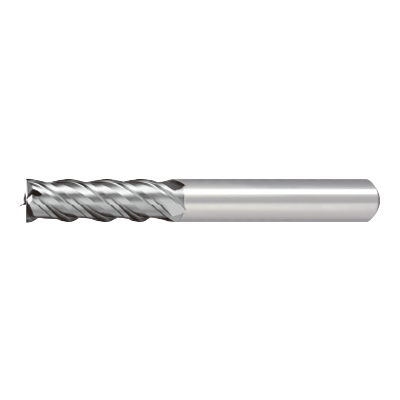

diaedge
VQJHVD1/2
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

690970

ANSI

VQJHV/1/2

ISO

VQJHVD1/2

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

10

Regular price $284.69 USD
Regular price Sale price $284.69 USD
Sale

EDP

690970

ANSI

VQJHV/1/2

ISO

VQJHVD1/2

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

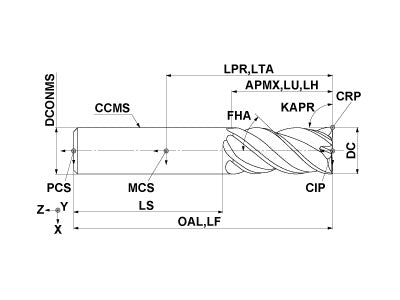

  • Drawings
  • Technical Information
VQJHVD1/2
Coolant
External
Hand
Right

Unit: inch

DC
0.5
APMX
1.65
LU
1.65
LH
1.65
OAL
4
DCONMS
0.5
FHA
40.0
ZEFP
4
ZEFF
4
VQJHVD1/2

Unit: inch

DC
0.5
APMX
1.65
LU
1.65
LH
1.65
OAL
4
DCONMS
0.5
FHA
40.0
ZEFP
4
ZEFF
4
