diaedge
VQJHVD0350
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

691016

ANSI

VQJHV/3.5

ISO

VQJHVD0350

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

25

Regular price $88.15 USD
Regular price Sale price $88.15 USD
Sale

EDP

691016

ANSI

VQJHV/3.5

ISO

VQJHVD0350

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

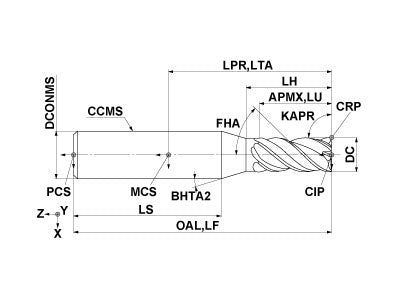

  • Drawings
  • Technical Information
VQJHVD0350
Coolant
External
Hand
Right

Unit: mm

DC
3.5
APMX
14
LU
14
LH
15.2
OAL
60
DCONMS
6
BHTA2
15
FHA
40
ZEFP
4
ZEFF
4
VQJHVD0350

Unit: mm

DC
3.5
APMX
14
LU
14
LH
15.2
OAL
60
DCONMS
6
BHTA2
15
FHA
40
ZEFP
4
ZEFF
4
