diaedge
VQJHVD0900
Skip to product information

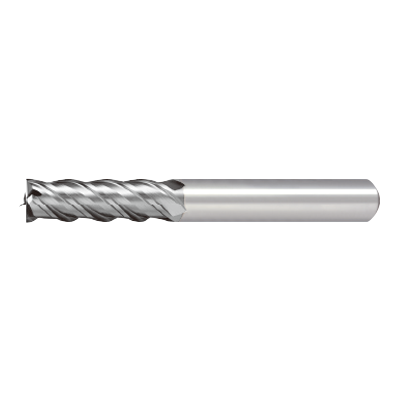

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

691083

ANSI

VQJHV/9

ISO

VQJHVD0900

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

22

Regular price $172.69 USD
Regular price Sale price $172.69 USD
Sale

EDP

691083

ANSI

VQJHV/9

ISO

VQJHVD0900

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

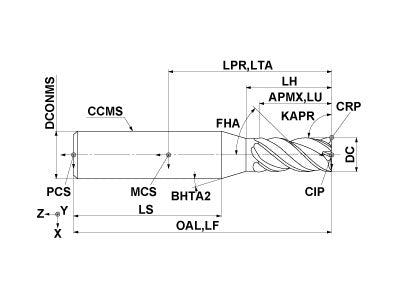

  • Drawings
  • Technical Information
VQJHVD0900
Coolant
External
Hand
Right

Unit: mm

DC
9
APMX
32
LU
32
LH
34.3
OAL
90
DCONMS
10
BHTA2
15
FHA
40
ZEFP
4
ZEFF
4
VQJHVD0900

Unit: mm

DC
9
APMX
32
LU
32
LH
34.3
OAL
90
DCONMS
10
BHTA2
15
FHA
40
ZEFP
4
ZEFF
4
