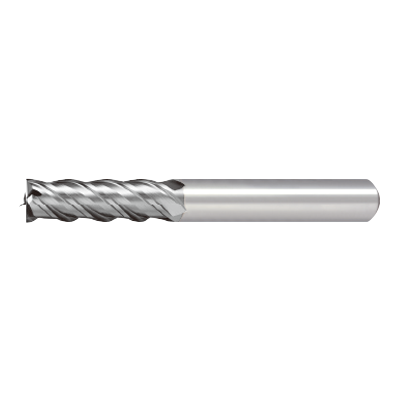

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

691091

ANSI

VQJHV/10

ISO

VQJHVD1000

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

51

Regular price $172.69 USD
Regular price Sale price $172.69 USD
Sale

EDP

691091

ANSI

VQJHV/10

ISO

VQJHVD1000

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

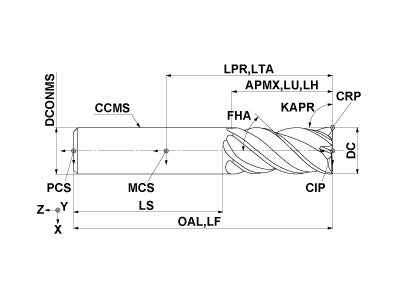

  • Drawings
  • Technical Information
VQJHVD1000
Coolant
External
Hand
Right

Unit: mm

DC
10
APMX
35
LU
35
LH
35
OAL
90
DCONMS
10
FHA
40
ZEFP
4
ZEFF
4
VQJHVD1000

Unit: mm

DC
10
APMX
35
LU
35
LH
35
OAL
90
DCONMS
10
FHA
40
ZEFP
4
ZEFF
4
