diaedge
VQXLD0030N009
Skip to product information

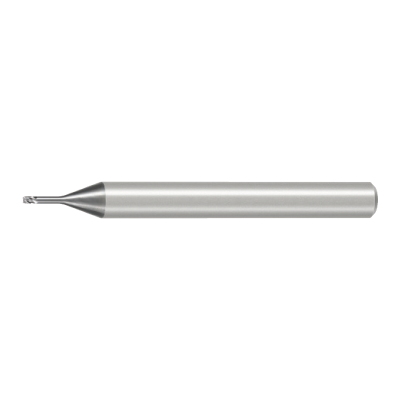

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

691147

ANSI

VQXL/0.3X0.9

ISO

VQXLD0030N009

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

186

Regular price $90.46 USD
Regular price Sale price $90.46 USD
Sale

EDP

691147

ANSI

VQXL/0.3X0.9

ISO

VQXLD0030N009

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

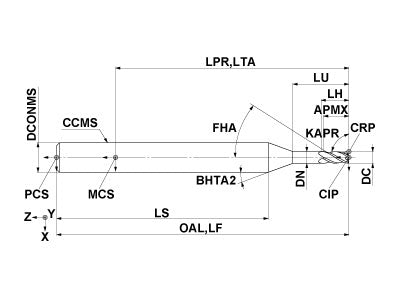

  • Drawings
  • Technical Information
VQXLD0030N009
Coolant
External
Hand
Right

Unit: mm

DC
0.3
APMX
0.5
LU
0.9
LH
0.51
OAL
40
DN
0.28
DCONMS
4
BHTA2
20
FHA
35
ZEFP
3
ZEFF
3
VQXLD0030N009

Unit: mm

DC
0.3
APMX
0.5
LU
0.9
LH
0.51
OAL
40
DN
0.28
DCONMS
4
BHTA2
20
FHA
35
ZEFP
3
ZEFF
3
