diaedge
VQXLD0050N025
Skip to product information

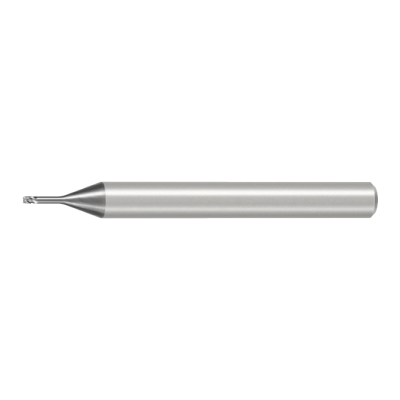

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

691198

ANSI

VQXL/0.5X2.5

ISO

VQXLD0050N025

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

1124

Regular price $75.39 USD
Regular price Sale price $75.39 USD
Sale

EDP

691198

ANSI

VQXL/0.5X2.5

ISO

VQXLD0050N025

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

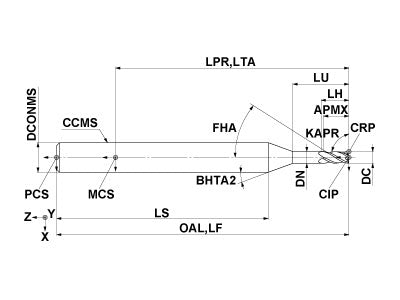

  • Drawings
  • Technical Information
VQXLD0050N025
Coolant
External
Hand
Right

Unit: mm

DC
0.5
APMX
0.7
LU
2.5
LH
0.72
OAL
40
DN
0.47
DCONMS
4
BHTA2
20
FHA
35
ZEFP
4
ZEFF
4
VQXLD0050N025

Unit: mm

DC
0.5
APMX
0.7
LU
2.5
LH
0.72
OAL
40
DN
0.47
DCONMS
4
BHTA2
20
FHA
35
ZEFP
4
ZEFF
4
