diaedge
MVE1429X02S160 DP1020
Skip to product information

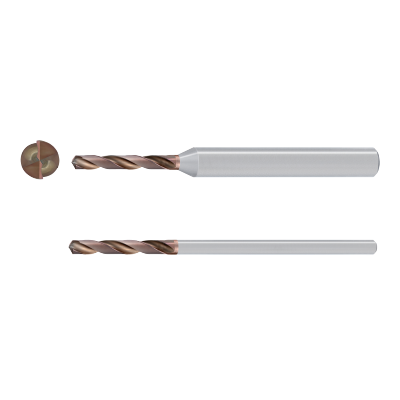

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

693628

ANSI

MVE1429X02S160 DP1020

ISO

MVE1429X02S160 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

58

Regular price $299.76 USD
Regular price Sale price $299.76 USD
Sale

EDP

693628

ANSI

MVE1429X02S160 DP1020

ISO

MVE1429X02S160 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

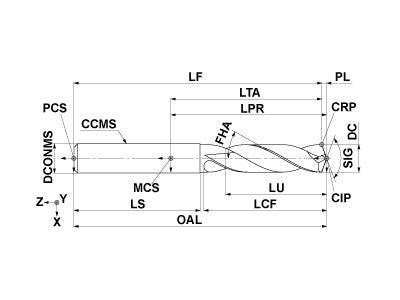

  • Drawings
  • Technical Information
MVE1429X02S160 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.5625
ULDR
2.0
LU
1.227
LCF
2.307
OAL
4.472
DCONMS
0.63
PL
0.102
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
MVE1429X02S160 DP1020

Unit: inch

DC
0.5625
ULDR
2.0
LU
1.227
LCF
2.307
OAL
4.472
DCONMS
0.63
PL
0.102
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
