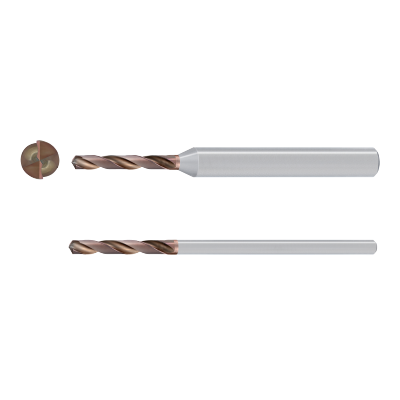

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

693661

ANSI

MVE1588X02S160 DP1020

ISO

MVE1588X02S160 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

19

Regular price $332.13 USD
Regular price Sale price $332.13 USD
Sale

EDP

693661

ANSI

MVE1588X02S160 DP1020

ISO

MVE1588X02S160 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

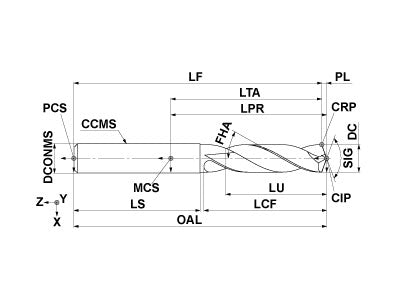

  • Drawings
  • Technical Information
MVE1588X02S160 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.625
ULDR
2.0
LU
1.364
LCF
2.398
OAL
4.641
DCONMS
0.63
PL
0.114
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
MVE1588X02S160 DP1020

Unit: inch

DC
0.625
ULDR
2.0
LU
1.364
LCF
2.398
OAL
4.641
DCONMS
0.63
PL
0.114
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
