diaedge
MVE1627X02S180 DP1020
Skip to product information

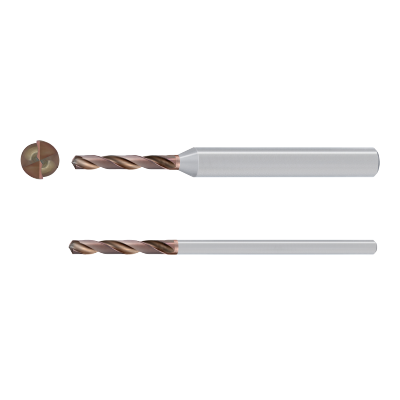

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

693679

ANSI

MVE1627X02S180 DP1020

ISO

MVE1627X02S180 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

14

Regular price $360.27 USD
Regular price Sale price $360.27 USD
Sale

EDP

693679

ANSI

MVE1627X02S180 DP1020

ISO

MVE1627X02S180 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

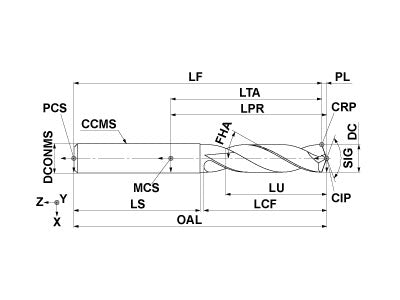

  • Drawings
  • Technical Information
MVE1627X02S180 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.6406
ULDR
2.0
LU
1.399
LCF
2.48
OAL
4.802
DCONMS
0.709
PL
0.117
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
MVE1627X02S180 DP1020

Unit: inch

DC
0.6406
ULDR
2.0
LU
1.399
LCF
2.48
OAL
4.802
DCONMS
0.709
PL
0.117
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
