diaedge
MVE1746X02S180 DP1020
Skip to product information

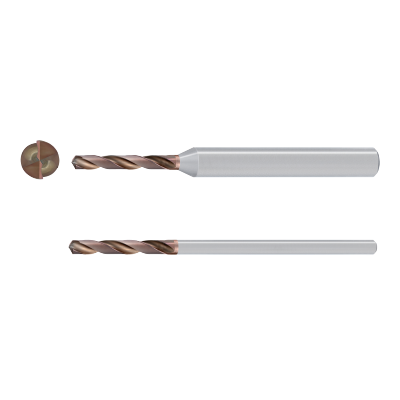

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

693708

ANSI

MVE1746X02S180 DP1020

ISO

MVE1746X02S180 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

7

Regular price $371.53 USD
Regular price Sale price $371.53 USD
Sale

EDP

693708

ANSI

MVE1746X02S180 DP1020

ISO

MVE1746X02S180 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

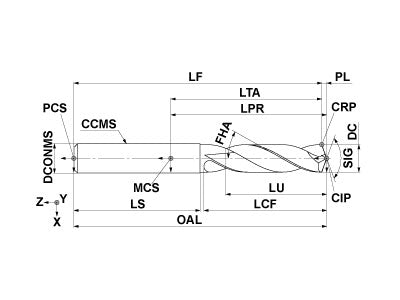

  • Drawings
  • Technical Information
MVE1746X02S180 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.6875
ULDR
2.0
LU
1.501
LCF
2.567
OAL
4.968
DCONMS
0.709
PL
0.125
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
MVE1746X02S180 DP1020

Unit: inch

DC
0.6875
ULDR
2.0
LU
1.501
LCF
2.567
OAL
4.968
DCONMS
0.709
PL
0.125
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
