MVE1826X02S200 DP1020
print open mailer

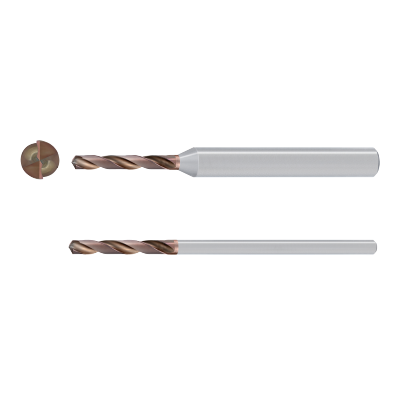

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

693724

ANSI

MVE1826X02S200 DP1020

ISO

MVE1826X02S200 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

Stock
8

Price
$590.47 USD
$590.47 USD
Sale

EDP

693724

ANSI

MVE1826X02S200 DP1020

ISO

MVE1826X02S200 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

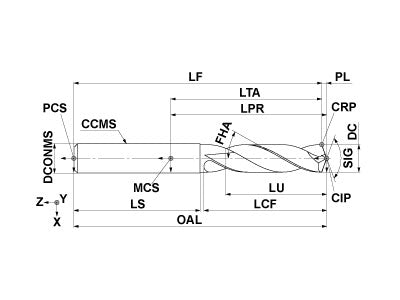

  • Drawings
  • Technical Information
MVE1826X02S200 DP1020
Coolant
External
Hand
Right

Unit: mm

DC
18.256
ULDR
2.0
LU
39.827
LCF
67.31
OAL
130.323
DCONMS
20
PL
3.323
SIG
140
FHA
30
DC Max
0
DC Min
-0.033
ZEFF
2
MVE1826X02S200 DP1020

Unit: mm

DC
18.256
ULDR
2.0
LU
39.827
LCF
67.31
OAL
130.323
DCONMS
20
PL
3.323
SIG
140
FHA
30
DC Max
0
DC Min
-0.033
ZEFF
2
