MVE1984X02S200 DP1020
Skip to product information

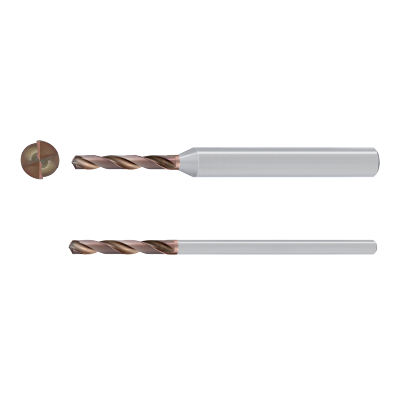

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

693775

ANSI

MVE1984X02S200 DP1020

ISO

MVE1984X02S200 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

15

Regular price $433.46 USD
Regular price Sale price $433.46 USD
Sale

EDP

693775

ANSI

MVE1984X02S200 DP1020

ISO

MVE1984X02S200 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions
  • Features

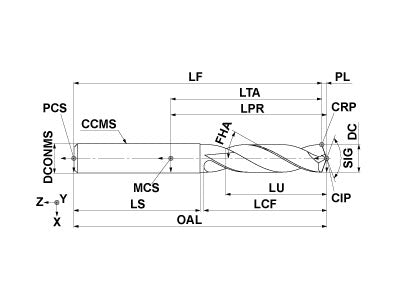

  • Drawings
  • Technical Information
MVE1984X02S200 DP1020
Coolant
External
Hand
Right

Unit: inch

DC
0.7812
ULDR
2.0
LU
1.704
LCF
2.74
OAL
5.3
DCONMS
0.787
PL
0.142
SIG
140
FHA
30
DC Max
0
DC Min
-0.0013
TCDCON
h6
ZEFF
2
MVE1984X02S200 DP1020

Unit: inch

DC
0.7812
ULDR
2.0
LU
1.704
LCF
2.74
OAL
5.3
DCONMS
0.787
PL
0.142
SIG
140
FHA
30
DC Max
0
DC Min
-0.0013
TCDCON
h6
ZEFF
2
