diaedge
MVS1389X03S140 DP1020
Skip to product information

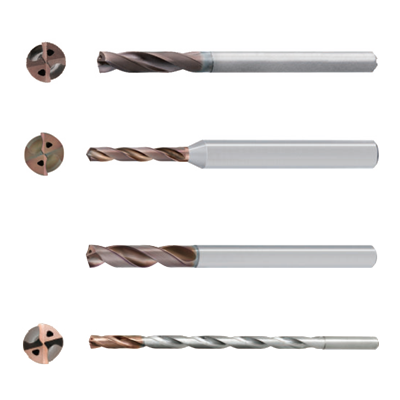

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

693951

ANSI

MVS1389X03S140 DP1020

ISO

MVS1389X03S140 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

23

Regular price $361.69 USD
Regular price Sale price $361.69 USD
Sale

EDP

693951

ANSI

MVS1389X03S140 DP1020

ISO

MVS1389X03S140 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MVS1389X03S140 DP1020
Coolant
Internal
Hand
Right

Unit: inch

DC
0.5469
ULDR
3
LU
1.739
LCF
2.854
OAL
5.375
DCONMS
0.551
PL
0.1
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
MVS1389X03S140 DP1020

Unit: inch

DC
0.5469
ULDR
3
LU
1.739
LCF
2.854
OAL
5.375
DCONMS
0.551
PL
0.1
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
