MVS1667X03S180 DP1020
print open mailer

The actual product may differ from the displayed image.
print open mailer

The actual product may differ from the displayed image.

1 2

EDP

694022

ANSI

MVS1667X03S180 DP1020

ISO

MVS1667X03S180 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

Stock
45

Price
$514.89 USD
$514.89 USD
Sale

EDP

694022

ANSI

MVS1667X03S180 DP1020

ISO

MVS1667X03S180 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

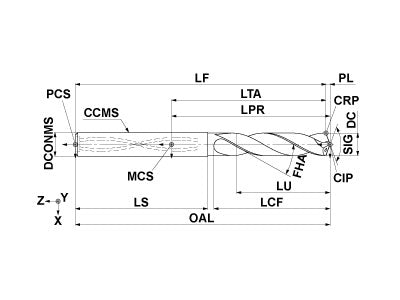

  • Drawings
  • Technical Information
MVS1667X03S180 DP1020
Coolant
Internal
Hand
Right

Unit: inch

DC
0.6563
ULDR
3
LU
2.087
LCF
3.465
OAL
6.025
DCONMS
0.7087
PL
0.119
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
ZEFF
2
MVS1667X03S180 DP1020

Unit: inch

DC
0.6563
ULDR
3
LU
2.087
LCF
3.465
OAL
6.025
DCONMS
0.7087
PL
0.119
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
ZEFF
2
