MVS1865X03S200 DP1020
Skip to product information

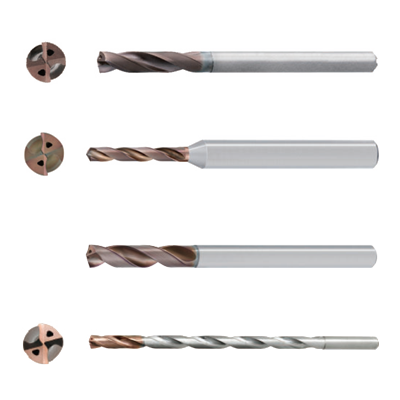

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

694073

ANSI

MVS1865X03S200 DP1020

ISO

MVS1865X03S200 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

44

Regular price $482.71 USD
Regular price Sale price $482.71 USD
Sale

EDP

694073

ANSI

MVS1865X03S200 DP1020

ISO

MVS1865X03S200 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MVS1865X03S200 DP1020
Coolant
Internal
Hand
Right

Unit: inch

DC
0.7344
ULDR
3
LU
2.337
LCF
3.874
OAL
6.433
DCONMS
0.787
PL
0.134
SIG
140
FHA
30
DC Max
0
DC Min
-0.0013
TCDCON
h6
ZEFF
2
MVS1865X03S200 DP1020

Unit: inch

DC
0.7344
ULDR
3
LU
2.337
LCF
3.874
OAL
6.433
DCONMS
0.787
PL
0.134
SIG
140
FHA
30
DC Max
0
DC Min
-0.0013
TCDCON
h6
ZEFF
2
