diaedge
MVS1468X05S160 DP1020
Skip to product information

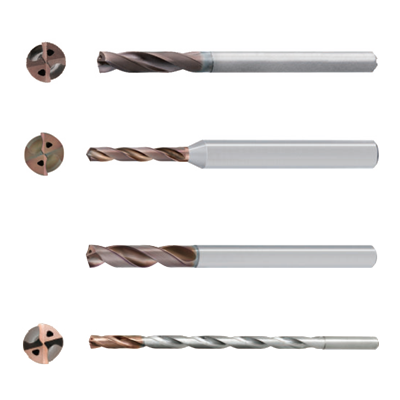

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

694145

ANSI

MVS1468X05S160 DP1020

ISO

MVS1468X05S160 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)

26

Regular price $433.46 USD
Regular price Sale price $433.46 USD
Sale

EDP

694145

ANSI

MVS1468X05S160 DP1020

ISO

MVS1468X05S160 DP1020

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
MVS1468X05S160 DP1020
Coolant
Internal
Hand
Right

Unit: inch

DC
0.5781
ULDR
5
LU
2.997
LCF
4.831
OAL
7.389
DCONMS
0.63
PL
0.105
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
MVS1468X05S160 DP1020

Unit: inch

DC
0.5781
ULDR
5
LU
2.997
LCF
4.831
OAL
7.389
DCONMS
0.63
PL
0.105
SIG
140
FHA
30
DC Max
0
DC Min
-0.0011
TCDCON
h6
ZEFF
2
