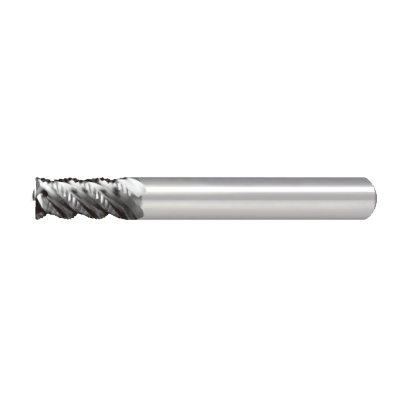

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

803305

ANSI

VQSVR/5

ISO

VQSVRD0500

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

20

Regular price $158.32 USD
Regular price Sale price $158.32 USD
Sale

EDP

803305

ANSI

VQSVR/5

ISO

VQSVRD0500

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

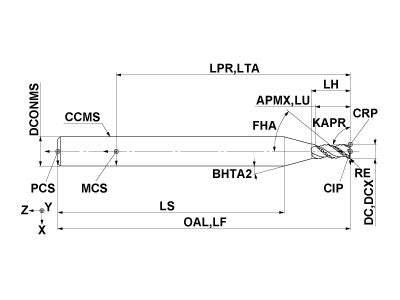

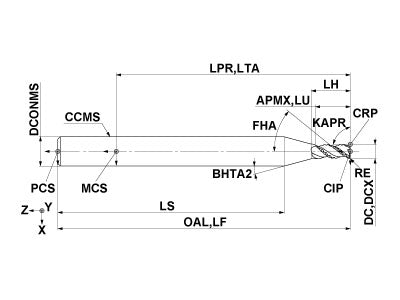

  • Drawings
  • Technical Information
VQSVRD0500
Coolant
External
Hand
Right

Unit: mm

DC
5
APMX
10
LU
10
LH
11.2
OAL
60
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
3
ZEFF
3
VQSVRD0500

Unit: mm

DC
5
APMX
10
LU
10
LH
11.2
OAL
60
DCONMS
6
BHTA2
15
RE
0.3
FHA
45
ZEFP
3
ZEFF
3
