diaedge
VQMHVD0900S08
Skip to product information

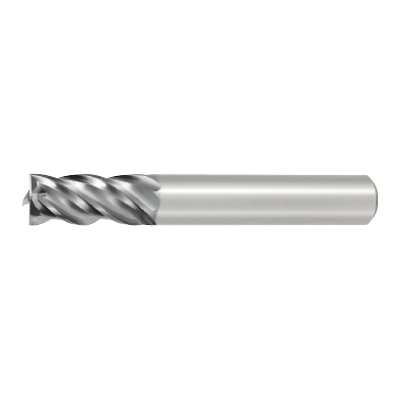

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

805693

ANSI

VQMHV/9X8

ISO

VQMHVD0900S08

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

3

Regular price $108.55 USD
Regular price Sale price $108.55 USD
Sale

EDP

805693

ANSI

VQMHV/9X8

ISO

VQMHVD0900S08

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

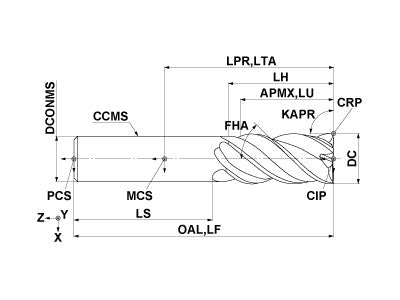

  • Drawings
  • Technical Information
VQMHVD0900S08
Coolant
External
Hand
Right

Unit: mm

DC
9
APMX
22
LU
22
LH
23.5
OAL
75
DCONMS
8
FHA
40
ZEFP
4
ZEFF
4
VQMHVD0900S08

Unit: mm

DC
9
APMX
22
LU
22
LH
23.5
OAL
75
DCONMS
8
FHA
40
ZEFP
4
ZEFF
4
