IMX10C4HV100R15010 EP7020
Skip to product information

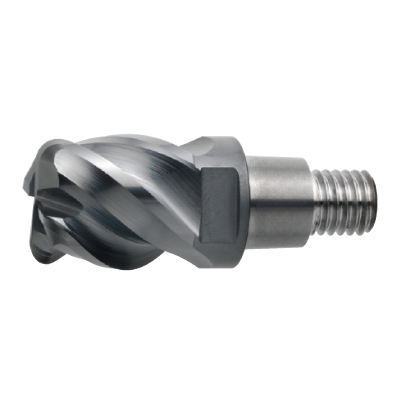

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

805870

ANSI

IMX10C4HV100R15010 EP7020

ISO

IMX10C4HV100R15010 EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

1

Regular price $111.60 USD
Regular price Sale price $111.60 USD
Sale

EDP

805870

ANSI

IMX10C4HV100R15010 EP7020

ISO

IMX10C4HV100R15010 EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

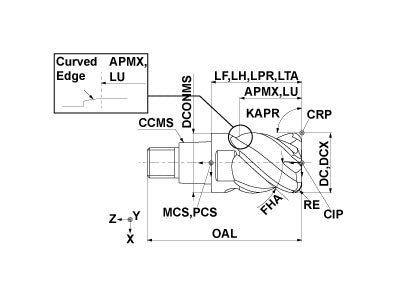

  • Drawings
  • Technical Information
IMX10C4HV100R15010 EP7020
Coolant
External
Hand
Right

Unit: mm

DC
10
APMX
10
LU
10
LH
16
OAL
29.1
DCONMS
9.7
RE
1.5
FHA
45
ZEFP
4
ZEFF
4

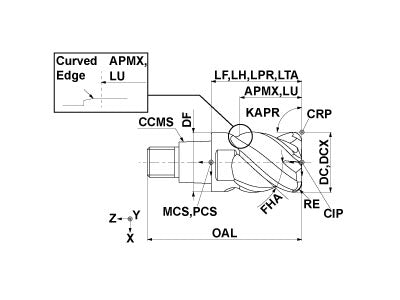

IMX10C4HV100R15010 EP7020

Unit: mm

DC
10
APMX
10
LU
10
LH
16
OAL
29.1
DCONMS
9.7
RE
1.5
FHA
45
ZEFP
4
ZEFF
4
