diaedge
IMX12C4HV120R30012 EP7020
Skip to product information

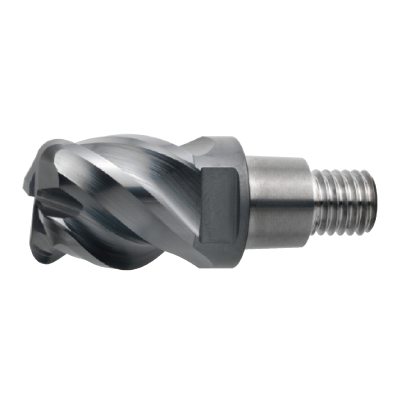

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

805925

ANSI

IMX12C4HV120R30012 EP7020

ISO

IMX12C4HV120R30012 EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

5

Regular price $140.24 USD
Regular price Sale price $140.24 USD
Sale

EDP

805925

ANSI

IMX12C4HV120R30012 EP7020

ISO

IMX12C4HV120R30012 EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

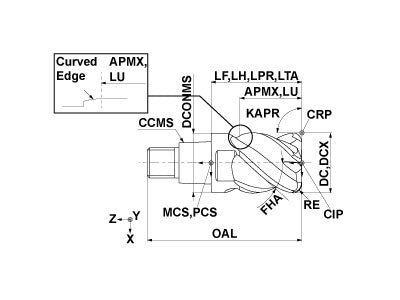

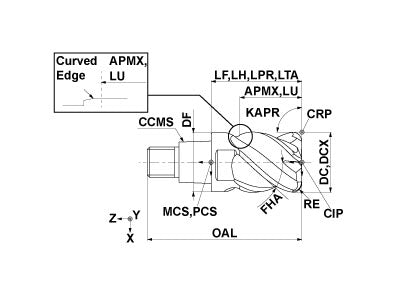

  • Drawings
  • Technical Information
IMX12C4HV120R30012 EP7020
Coolant
External
Hand
Right

Unit: mm

DC
12
APMX
12
LU
12
LH
19
OAL
33.7
DCONMS
11.7
RE
3
FHA
45
ZEFP
4
ZEFF
4
IMX12C4HV120R30012 EP7020

Unit: mm

DC
12
APMX
12
LU
12
LH
19
OAL
33.7
DCONMS
11.7
RE
3
FHA
45
ZEFP
4
ZEFF
4
