diaedge
IMX16C4HV160R15016 EP7020
Skip to product information

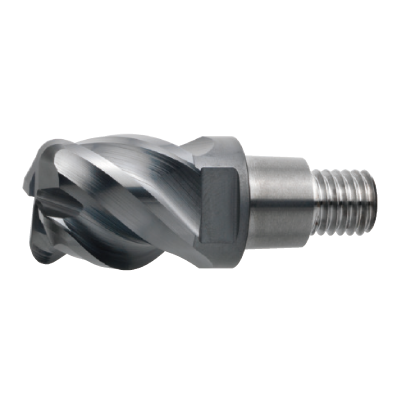

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

805941

ANSI

IMX16C4HV160R15016 EP7020

ISO

IMX16C4HV160R15016 EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

6

Regular price $218.22 USD
Regular price Sale price $218.22 USD
Sale

EDP

805941

ANSI

IMX16C4HV160R15016 EP7020

ISO

IMX16C4HV160R15016 EP7020

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

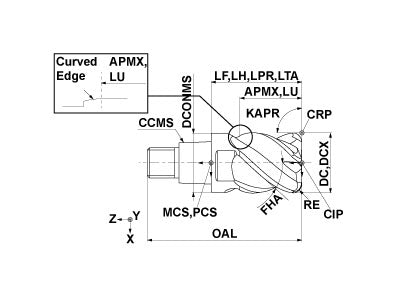

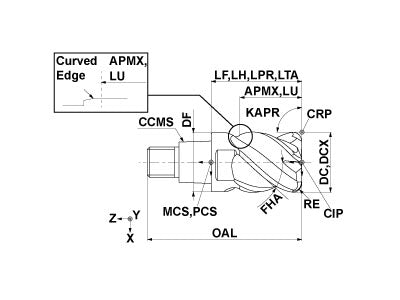

  • Drawings
  • Technical Information
IMX16C4HV160R15016 EP7020
Coolant
External
Hand
Right

Unit: mm

DC
16
APMX
16
LU
16
LH
24
OAL
41.3
DCONMS
15.5
RE
1.5
FHA
45
ZEFP
4
ZEFF
4
IMX16C4HV160R15016 EP7020

Unit: mm

DC
16
APMX
16
LU
16
LH
24
OAL
41.3
DCONMS
15.5
RE
1.5
FHA
45
ZEFP
4
ZEFF
4
