diaedge
IMX10B4HV10010E EP7020
Skip to product information

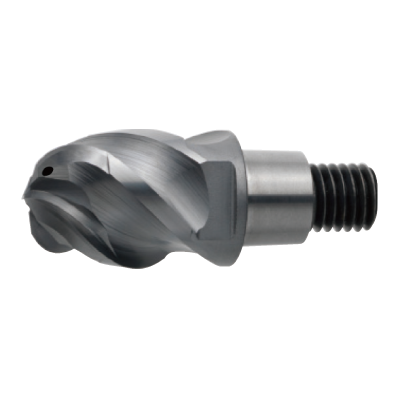

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

806012

ANSI

IMX10B4HV10010E EP7020

ISO

IMX10B4HV10010E EP7020

P (Steel) M (Stainless) S (Heat-Resistant)

33

Regular price $174.91 USD
Regular price Sale price $174.91 USD
Sale

EDP

806012

ANSI

IMX10B4HV10010E EP7020

ISO

IMX10B4HV10010E EP7020

P (Steel) M (Stainless) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

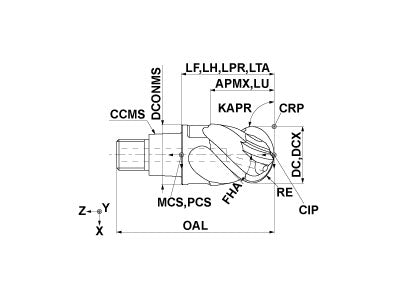

  • Drawings
  • Technical Information
IMX10B4HV10010E EP7020
Coolant
Internal
Hand
Right

Unit: mm

DC
10
APMX
10.5
LU
10.5
LH
16
OAL
29.1
DCONMS
9.7
RE
5
FHA
45
ZEFP
4
ZEFF
4
IMX10B4HV10010E EP7020

Unit: mm

DC
10
APMX
10.5
LU
10.5
LH
16
OAL
29.1
DCONMS
9.7
RE
5
FHA
45
ZEFP
4
ZEFF
4
