diaedge
IMX10C4FV100R20010 EP6120
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

806119

ANSI

IMX10C4FV100R20010 EP6120

ISO

IMX10C4FV100R20010 EP6120

P (Steel) K (Cast Iron) H (Hard material)

9

Regular price $111.60 USD
Regular price Sale price $111.60 USD
Sale

EDP

806119

ANSI

IMX10C4FV100R20010 EP6120

ISO

IMX10C4FV100R20010 EP6120

P (Steel) K (Cast Iron) H (Hard material)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
IMX10C4FV100R20010 EP6120
Coolant
External
Hand
Right

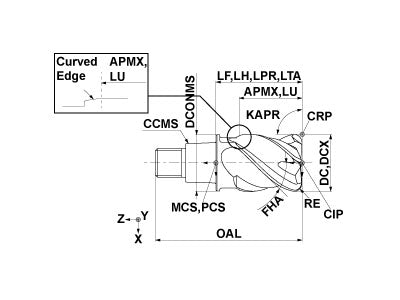

Unit: mm

DC
10
APMX
10.5
LU
10.5
LH
16
OAL
29.1
DCONMS
9.7
RE
2
FHA
45
ZEFP
4
ZEFF
4

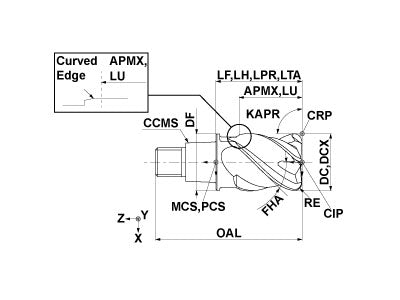

IMX10C4FV100R20010 EP6120

Unit: mm

DC
10
APMX
10.5
LU
10.5
LH
16
OAL
29.1
DCONMS
9.7
RE
2
FHA
45
ZEFP
4
ZEFF
4
