diaedge
VQMHVD1200S10
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

806881

ANSI

VQMHV/12X10

ISO

VQMHVD1200S10

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)

5

Regular price $184.87 USD
Regular price Sale price $184.87 USD
Sale

EDP

806881

ANSI

VQMHV/12X10

ISO

VQMHVD1200S10

P (Steel) M (Stainless) N (Non-Ferrous) S (Heat-Resistant)
View full details
  • Dimensions
  • Features

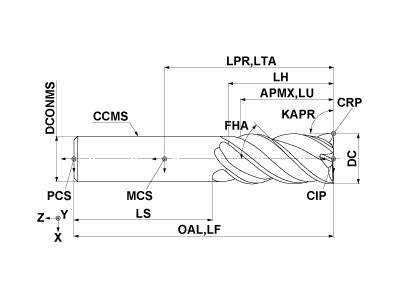

  • Drawings
  • Technical Information
VQMHVD1200S10
Coolant
External
Hand
Right

Unit: mm

DC
12
APMX
26
LU
26
LH
28
OAL
110
DCONMS
10
FHA
40
ZEFP
4
ZEFF
4
VQMHVD1200S10

Unit: mm

DC
12
APMX
26
LU
26
LH
28
OAL
110
DCONMS
10
FHA
40
ZEFP
4
ZEFF
4
