diaedge
GYSR1616JX00-D17
Skip to product information

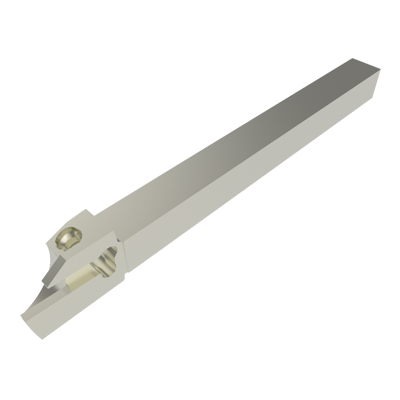

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

808982

ANSI

GYSR1616JX00-D17

ISO

GYSR1616JX00-D17

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)

7

Regular price $176.97 USD
Regular price Sale price $176.97 USD
Sale

EDP

808982

ANSI

GYSR1616JX00-D17

ISO

GYSR1616JX00-D17

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
View full details
  • Dimensions

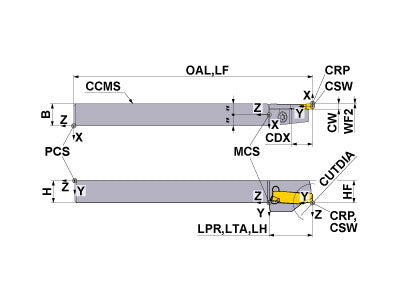

  • Drawings
  • Technical Information
GYSR1616JX00-D17
Coolant
External
Hand
Right

Unit: mm

CW
2
CDX
17
CUTDIA
34
H
16
B
16
LF
120
LH
27
HF
16
WF2
0
OAL
120
GYSR1616JX00-D17

Unit: mm

CW
2
CDX
17
CUTDIA
34
H
16
B
16
LF
120
LH
27
HF
16
WF2
0
OAL
120

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TKY15R 106902 TKY15R
inventory mark
$3.40
TS4SBL 462168 TS4SBL
inventory mark
$9.09
