EDP

828334

ANSI

WSX445UR1503SA

ISO

WSX445UR1503SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

14

Regular price $564.58 USD
Regular price Sale price $564.58 USD
Sale

EDP

828334

ANSI

WSX445UR1503SA

ISO

WSX445UR1503SA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

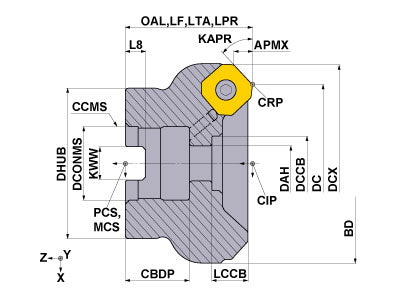

  • Drawings
  • Technical Information
WSX445UR1503SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
DCX
2.005
LF
1.75
APMX
0.197
OAL
1.75
DCONMS
0.5
DCSFMS
1.437
NOF
3
ZEFF
3
ZEFP
3
KAPR
45
RPMX
19000
GAMF
-12
GAMP
-6
WT
0.772
WSX445UR1503SA

Unit: inch

DC
1.5
DCX
2.005
LF
1.75
APMX
0.197
OAL
1.75
DCONMS
0.5
DCSFMS
1.437
NOF
3
ZEFF
3
ZEFP
3
KAPR
45
RPMX
19000
GAMF
-12
GAMP
-6
WT
0.772

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15W 410544 TIP15W
inventory mark
$25.07
HSCU25011H 846891 HSCU25011H
inventory mark
$20.72
TPS4R 846049 TPS4R
inventory mark
$5.79
