WSX445UR2505CA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

828406

ANSI

WSX445UR2505CA

ISO

WSX445UR2505CA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

52

Regular price $871.68 USD
Regular price Sale price $871.68 USD
Sale

EDP

828406

ANSI

WSX445UR2505CA

ISO

WSX445UR2505CA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

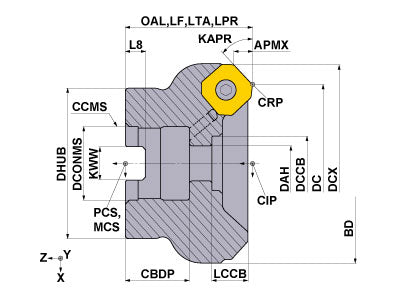

  • Drawings
  • Technical Information
WSX445UR2505CA
Coolant
Internal
Hand
Right

Unit: inch

DC
2.5
DCX
3.006
LF
2
APMX
0.197
OAL
2
DCONMS
1
DCSFMS
2.19
NOF
5
ZEFF
5
ZEFP
5
KAPR
45
RPMX
15000
GAMF
-10
GAMP
-6
WT
1.962
WSX445UR2505CA

Unit: inch

DC
2.5
DCX
3.006
LF
2
APMX
0.197
OAL
2
DCONMS
1
DCSFMS
2.19
NOF
5
ZEFF
5
ZEFP
5
KAPR
45
RPMX
15000
GAMF
-10
GAMP
-6
WT
1.962

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP15W 410544 TIP15W
inventory mark
$25.07
TPS4R 846049 TPS4R
inventory mark
$5.79
HSCU50014H 243707 HSCU50014H
inventory mark
$28.38
