WSX445UR0306CA

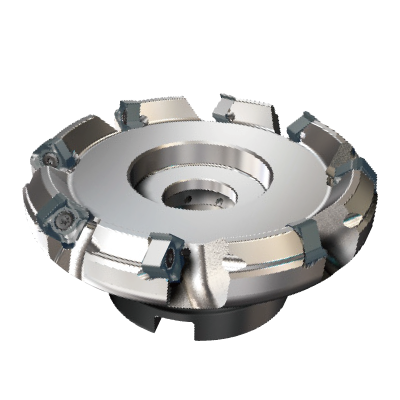

The actual product may differ from the displayed image.
The actual product may differ from the displayed image.
Stock
158
Price
Regular price
$1,029.23 USD
Regular price
Sale price
$1,029.23 USD
Unit price
per
- Dimensions
- Features
- Drawings
- Technical Information
Coolant
Internal
Hand
Right

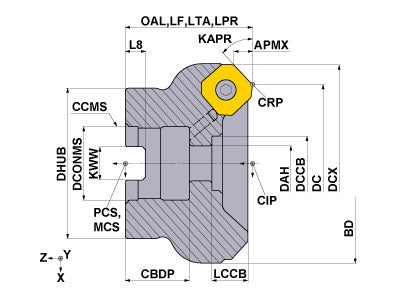

Unit: mm
DC
76.2
DCX
89.05
LF
50.8
APMX
5
OAL
50.8
DCONMS
25.4
DCSFMS
55.63
NOF
6
ZEFF
6
ZEFP
6
KAPR
45
RPMX
14000
GAMF
-10
GAMP
-6
WT
2.491
Unit: mm
DC
76.2
DCX
89.05
LF
50.8
APMX
5
OAL
50.8
DCONMS
25.4
DCSFMS
55.63
NOF
6
ZEFF
6
ZEFP
6
KAPR
45
RPMX
14000
GAMF
-10
GAMP
-6
WT
2.491
