- Dimensions
- Features

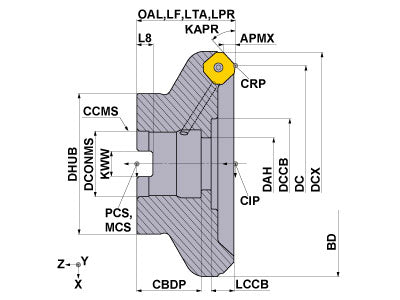

- Drawings
- Technical Information
Coolant
Internal
Hand
Right
Unit: inch
DC
4
DCX
4.506
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
1.5
DCSFMS
3.5
NOF
7
ZEFF
7
ZEFP
7
KAPR
45
RPMX
12000
GAMF
-10
GAMP
-6
WT
5.776
