EDP

828529

ANSI

WSX445UR0610EA

ISO

WSX445UR0610EA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2

13

Regular price $1,974.70 USD
Regular price Sale price $1,974.70 USD
Sale

EDP

828529

ANSI

WSX445UR0610EA

ISO

WSX445UR0610EA

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) S (Heat-Resistant) H (Hard material)
45 Accuracy_finishing Accuracy_roughing Application_Face milling Shoulder_milling_2
View full details
  • Dimensions
  • Features

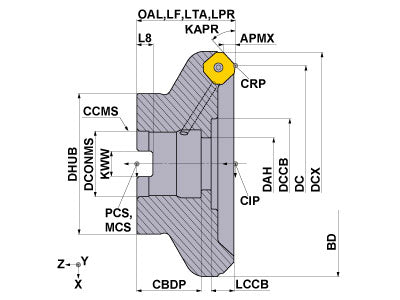

  • Drawings
  • Technical Information
WSX445UR0610EA
Coolant
Internal
Hand
Right

Unit: inch

DC
6
DCX
6.506
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
1.5
DCSFMS
3.813
NOF
10
ZEFF
10
ZEFP
10
KAPR
45
RPMX
9500
GAMF
-10
GAMP
-6
WT
10.340
WSX445UR0610EA

Unit: inch

DC
6
DCX
6.506
LF
2.5
APMX
0.197
OAL
2.5
DCONMS
1.5
DCSFMS
3.813
NOF
10
ZEFF
10
ZEFP
10
KAPR
45
RPMX
9500
GAMF
-10
GAMP
-6
WT
10.340

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS4R 846049 TPS4R
inventory mark
$5.79
TIP15W 410544 TIP15W
inventory mark
$25.07
MBAU75016H 418010 MBAU75016H
inventory mark
$158.70
