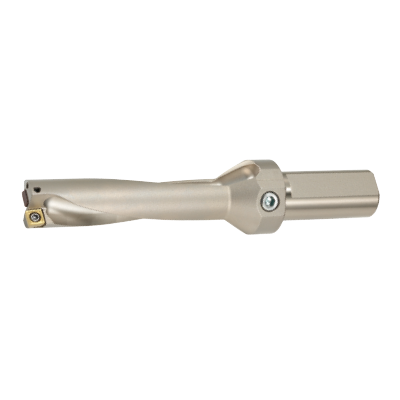

MVX2125X3C150
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

837812

ANSI

MVX2125X3C150

ISO

MVX2125X3C150

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)

10

Regular price $1,107.30 USD
Regular price Sale price $1,107.30 USD
Sale

EDP

837812

ANSI

MVX2125X3C150

ISO

MVX2125X3C150

P (Steel) M (Stainless) K (Cast Iron) N (Non-Ferrous) H (Hard material)
View full details
  • Dimensions
  • Features

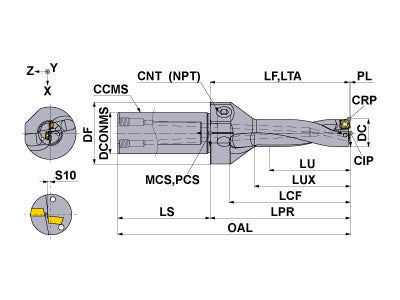

  • Drawings
  • Technical Information
MVX2125X3C150
Coolant
Internal
Hand
Right

Unit: inch

DC
2.125
ULDR
3.0
LU
6.375
LCF
7.83
LPR
8.225
OAL
10.975
DCONMS
1.5
PL
0.099
SIG
169.4
ZEFF
1
MVX2125X3C150

Unit: inch

DC
2.125
ULDR
3.0
LU
6.375
LCF
7.83
LPR
8.225
OAL
10.975
DCONMS
1.5
PL
0.099
SIG
169.4
ZEFF
1

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TIP25D 845311 TIP25D
inventory mark
$27.42
HKY50R 102293 HKY50R
inventory mark
$4.27
TPS54 845302 TPS54
inventory mark
$8.13
