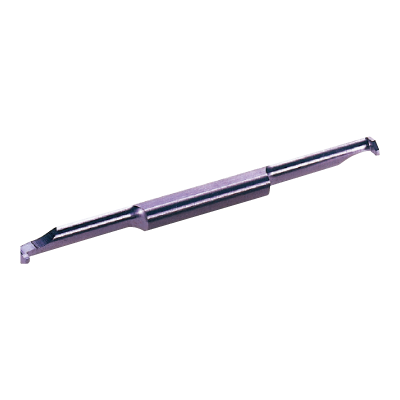

CG03RS-10 VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

296948

ANSI

VP15TF

ISO

CG03RS-10 VP15TF

P (Steel) M (Stainless) K (Cast Iron)

7

Regular price $86.95 USD
Regular price Sale price $86.95 USD
Sale

EDP

296948

ANSI

VP15TF

ISO

CG03RS-10 VP15TF

P (Steel) M (Stainless) K (Cast Iron)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
CG03RS-10 VP15TF
Coolant
External
Hand
Right

Unit: mm

REL
0.05
RER
0.05
CDX
1
CW
1
DMIN
3
DCONMS
3
LF
50
LU
10
WF
1.3
H
2.7
CG03RS-10 VP15TF

Unit: mm

REL
0.05
RER
0.05
CDX
1
CW
1
DMIN
3
DCONMS
3
LF
50
LU
10
WF
1.3
H
2.7
