diaedge

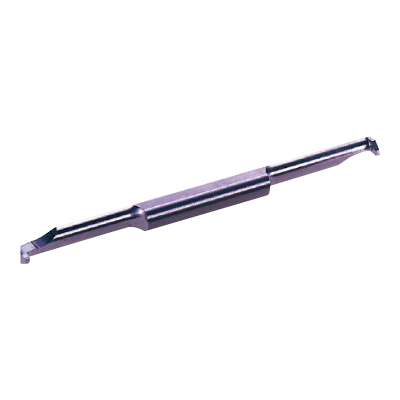

CG04RS-10 VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

297027

ANSI

VP15TF

ISO

CG04RS-10 VP15TF

P (Steel) M (Stainless) K (Cast Iron)

6

Regular price $90.88 USD
Regular price Sale price $90.88 USD
Sale

EDP

297027

ANSI

VP15TF

ISO

CG04RS-10 VP15TF

P (Steel) M (Stainless) K (Cast Iron)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
CG04RS-10 VP15TF
Coolant
External
Hand
Right

Unit: mm

REL
0.05
RER
0.05
CDX
1.5
CW
1
DMIN
4
DCONMS
4
LF
60
LU
15
WF
1.8
H
3.6
CG04RS-10 VP15TF

Unit: mm

REL
0.05
RER
0.05
CDX
1.5
CW
1
DMIN
4
DCONMS
4
LF
60
LU
15
WF
1.8
H
3.6
