diaedge
CG04RS-10B TF15
Skip to product information

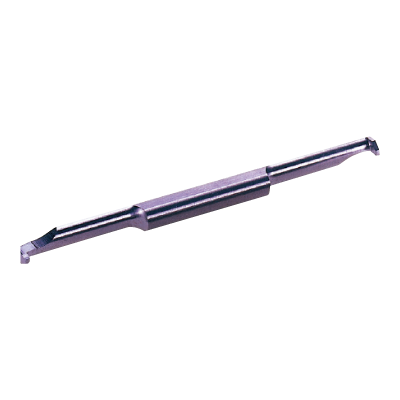

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

297035

ANSI

CG04RS-10B TF15

ISO

CG04RS-10B TF15

N (Non-Ferrous)

4

Regular price $73.54 USD
Regular price Sale price $73.54 USD
Sale

EDP

297035

ANSI

CG04RS-10B TF15

ISO

CG04RS-10B TF15

N (Non-Ferrous)
View full details
  • Dimensions
  • Features

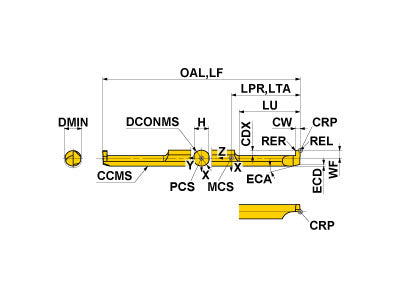

  • Drawings
  • Technical Information
CG04RS-10B TF15
Coolant
External
Hand
Right

Unit: mm

REL
0.05
RER
0.05
CDX
1.5
CW
1
DMIN
4
DCONMS
4
LF
60
LU
15
WF
1.8
H
3.6
CG04RS-10B TF15

Unit: mm

REL
0.05
RER
0.05
CDX
1.5
CW
1
DMIN
4
DCONMS
4
LF
60
LU
15
WF
1.8
H
3.6

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
RBH1640N 297553 RBH1640N
inventory mark
$127.84
RBH2540N 297781 RBH2540N
inventory mark
$200.92
RBH19040N 297609 RBH19040N
inventory mark
$146.10
RBH2040N 297668 RBH2040N
inventory mark
$164.39
RBH2240N 297721 RBH2240N
inventory mark
$182.64
