diaedge
CG04RS-20B TF15
Skip to product information

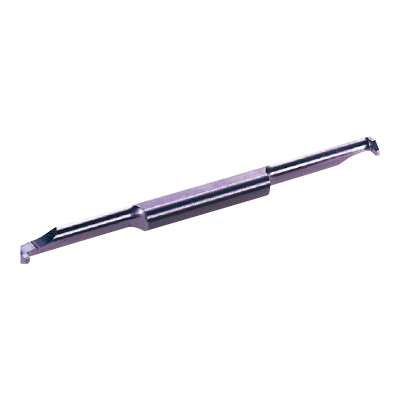

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

297078

ANSI

TF15

ISO

CG04RS-20B TF15

N (Non-Ferrous)

5

Regular price $79.42 USD
Regular price Sale price $79.42 USD
Sale

EDP

297078

ANSI

TF15

ISO

CG04RS-20B TF15

N (Non-Ferrous)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
CG04RS-20B TF15
Coolant
External
Hand
Right

Unit: mm

REL
0.1
RER
0.1
CDX
1.5
CW
2
DMIN
4
DCONMS
4
LF
60
LU
16
WF
1.8
H
3.6
CG04RS-20B TF15

Unit: mm

REL
0.1
RER
0.1
CDX
1.5
CW
2
DMIN
4
DCONMS
4
LF
60
LU
16
WF
1.8
H
3.6
