CG05RS-20B VP15TF
Skip to product information

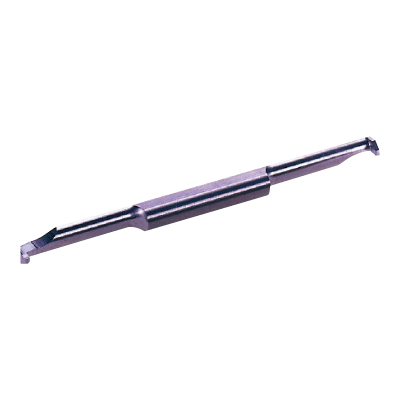

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

297166

ANSI

CG05RS-20B VP15TF

ISO

CG05RS-20B VP15TF

P (Steel) M (Stainless) K (Cast Iron)

7

Regular price $105.43 USD
Regular price Sale price $105.43 USD
Sale

EDP

297166

ANSI

CG05RS-20B VP15TF

ISO

CG05RS-20B VP15TF

P (Steel) M (Stainless) K (Cast Iron)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
CG05RS-20B VP15TF
Coolant
External
Hand
Right

Unit: mm

REL
0.1
RER
0.1
CDX
2
CW
2
DMIN
5
DCONMS
5
LF
70
LU
21
WF
2.3
H
4.5
CG05RS-20B VP15TF

Unit: mm

REL
0.1
RER
0.1
CDX
2
CW
2
DMIN
5
DCONMS
5
LF
70
LU
21
WF
2.3
H
4.5
