diaedge

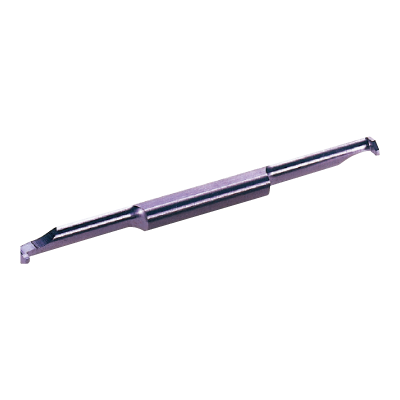

CG06RS-10B VP15TF
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

297203

ANSI

VP15TF

ISO

CG06RS-10B VP15TF

P (Steel) M (Stainless) K (Cast Iron)

7

Regular price $110.70 USD
Regular price Sale price $110.70 USD
Sale

EDP

297203

ANSI

VP15TF

ISO

CG06RS-10B VP15TF

P (Steel) M (Stainless) K (Cast Iron)
View full details
  • Dimensions
  • Features
  • Drawings
  • Technical Information
CG06RS-10B VP15TF
Coolant
External
Hand
Right

Unit: mm

REL
0.05
RER
0.05
CDX
2
CW
1
DMIN
6
DCONMS
6
LF
75
LU
20
WF
2.8
H
5.4
CG06RS-10B VP15TF

Unit: mm

REL
0.05
RER
0.05
CDX
2
CW
1
DMIN
6
DCONMS
6
LF
75
LU
20
WF
2.8
H
5.4
