diaedge
APX4000UR162FA16SA
Skip to product information

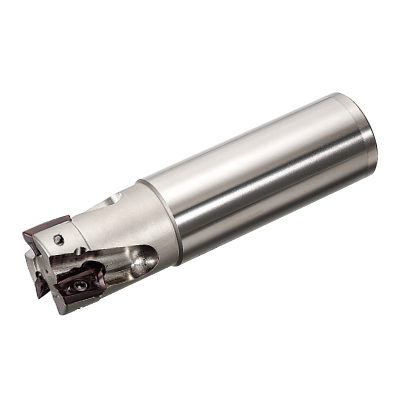

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

372963

ANSI

APX4000UR162FA16SA

ISO

APX4000UR162FA16SA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

131

Regular price $367.25 USD
Regular price Sale price $367.25 USD
Sale

EDP

372963

ANSI

APX4000UR162FA16SA

ISO

APX4000UR162FA16SA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

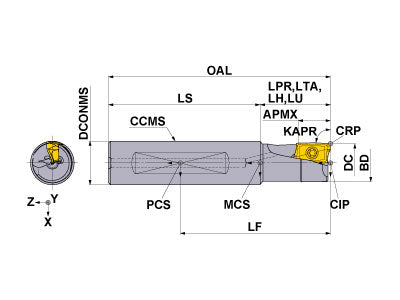

  • Drawings
  • Technical Information
APX4000UR162FA16SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
4.5
APMX
0.591
LH
1.25
OAL
4.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11
RPMX
12000
GAMF
21
GAMP
15
WT
0.9
APX4000UR162FA16SA

Unit: inch

DC
1
LF
4.5
APMX
0.591
LH
1.25
OAL
4.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11
RPMX
12000
GAMF
21
GAMP
15
WT
0.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS4 389044 TPS4
inventory mark
$2.96
MK1KS 291805 MK1KS
inventory mark
$4.22
TIP15W 410544 TIP15W
inventory mark
$22.13
