diaedge
APX4000UR244FA20SA
Skip to product information

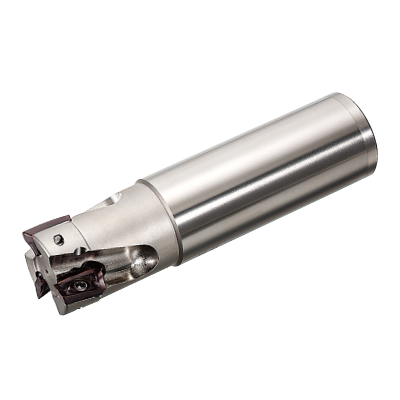

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

372998

ANSI

APX4000UR244FA20SA

ISO

APX4000UR244FA20SA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90

56

Regular price $427.82 USD
Regular price Sale price $427.82 USD
Sale

EDP

372998

ANSI

APX4000UR244FA20SA

ISO

APX4000UR244FA20SA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90
View full details
  • Dimensions
  • Features

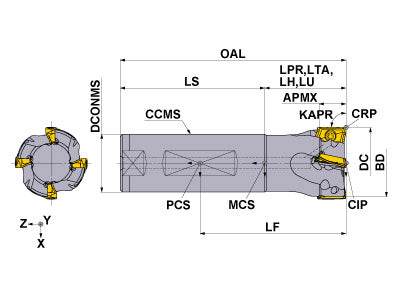

  • Drawings
  • Technical Information
APX4000UR244FA20SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.5
LF
5
APMX
0.591
LH
1.75
OAL
5
DCONMS
1.25
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
7
RPMX
7600
GAMF
23
GAMP
19
WT
1.7
APX4000UR244FA20SA

Unit: inch

DC
1.5
LF
5
APMX
0.591
LH
1.75
OAL
5
DCONMS
1.25
NOF
4
ZEFF
4
ZEFP
4
KAPR
90
RMPX
7
RPMX
7600
GAMF
23
GAMP
19
WT
1.7

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
TPS43 405155 TPS43
inventory mark
$2.74
TIP15W 410544 TIP15W
inventory mark
$20.49
MK1KS 291805 MK1KS
inventory mark
$3.91
