diaedge
APX4000UR121SA12SA
Skip to product information

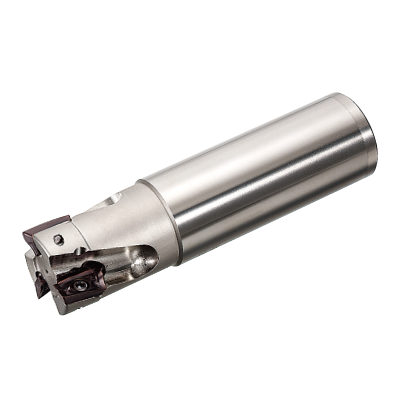

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 2

EDP

373000

ANSI

APX4000UR121SA12SA

ISO

APX4000UR121SA12SA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical

44

Regular price $298.48 USD
Regular price Sale price $298.48 USD
Sale

EDP

373000

ANSI

APX4000UR121SA12SA

ISO

APX4000UR121SA12SA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90 Accuracy_roughing Application_Face milling Shoulder milling_1 Application_Slot milling Application_Ramping Application_Pocket milling Helical
View full details
  • Dimensions
  • Features

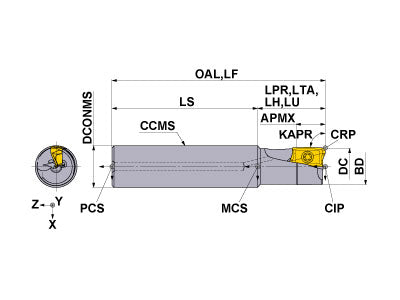

  • Drawings
  • Technical Information
APX4000UR121SA12SA
Coolant
Internal
Hand
Right

Unit: inch

DC
0.75
LF
4
APMX
0.591
LH
1.25
OAL
4
DCONMS
0.75
NOF
1
ZEFF
1
ZEFP
1
KAPR
90
RMPX
14
RPMX
16000
GAMF
13
GAMP
15
WT
0.4
APX4000UR121SA12SA

Unit: inch

DC
0.75
LF
4
APMX
0.591
LH
1.25
OAL
4
DCONMS
0.75
NOF
1
ZEFF
1
ZEFP
1
KAPR
90
RMPX
14
RPMX
16000
GAMF
13
GAMP
15
WT
0.4

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$4.22
TPS4S 544016 TPS4S
inventory mark
$12.48
TIP15W 410544 TIP15W
inventory mark
$22.13
