diaedge

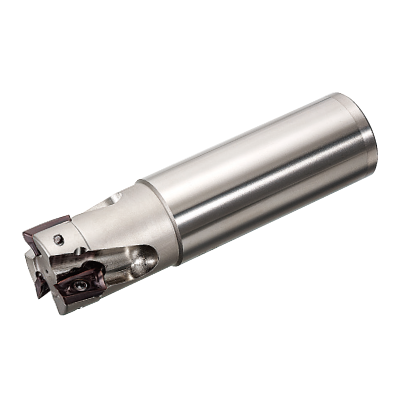

APX4000UR162SA16SA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

373026

ANSI

APX4000UR162SA16SA

ISO

APX4000UR162SA16SA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90

78

Regular price $340.05 USD
Regular price Sale price $340.05 USD
Sale

EDP

373026

ANSI

APX4000UR162SA16SA

ISO

APX4000UR162SA16SA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90
View full details
  • Dimensions
  • Features

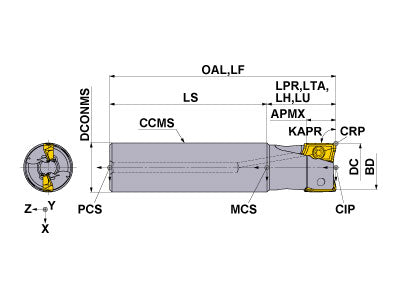

  • Drawings
  • Technical Information
APX4000UR162SA16SA
Coolant
Internal
Hand
Right

Unit: inch

DC
1
LF
4.5
APMX
0.591
LH
1.25
OAL
4.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11
RPMX
12000
GAMF
21
GAMP
15
WT
0.9
APX4000UR162SA16SA

Unit: inch

DC
1
LF
4.5
APMX
0.591
LH
1.25
OAL
4.5
DCONMS
1
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
11
RPMX
12000
GAMF
21
GAMP
15
WT
0.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$3.91
TIP15W 410544 TIP15W
inventory mark
$20.49
TPS4 389044 TPS4
inventory mark
$2.74
