APX4000UR202SA20LA
Skip to product information

The actual product may differ from the displayed image.

Skip to product information

The actual product may differ from the displayed image.

1 of 3

EDP

373085

ANSI

APX4000UR202SA20LA

ISO

APX4000UR202SA20LA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90

8

Regular price $379.05 USD
Regular price Sale price $379.05 USD
Sale

EDP

373085

ANSI

APX4000UR202SA20LA

ISO

APX4000UR202SA20LA

P (Steel) M (Stainless) K (Cast Iron) S (Heat-Resistant) H (Hard material)
90
View full details
  • Dimensions
  • Features

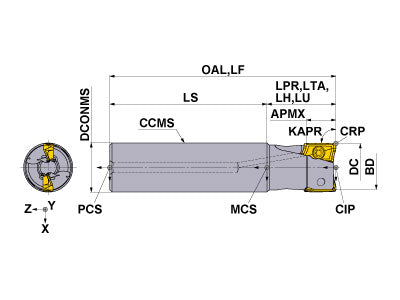

  • Drawings
  • Technical Information
APX4000UR202SA20LA
Coolant
Internal
Hand
Right

Unit: inch

DC
1.25
LF
9
APMX
0.591
LH
1.75
OAL
9
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
7
RPMX
9500
GAMF
23
GAMP
17
WT
2.9
APX4000UR202SA20LA

Unit: inch

DC
1.25
LF
9
APMX
0.591
LH
1.75
OAL
9
DCONMS
1.25
NOF
2
ZEFF
2
ZEFP
2
KAPR
90
RMPX
7
RPMX
9500
GAMF
23
GAMP
17
WT
2.9

Spareparts

in stock mark

= in Stock

out of stock mark

= Out of Stock

Image EDP Order Number Stock Price
MK1KS 291805 MK1KS
inventory mark
$3.91
TPS4 389044 TPS4
inventory mark
$2.74
TIP15W 410544 TIP15W
inventory mark
$20.49
