EDP
493044
ANSI
VP15TF
ISO

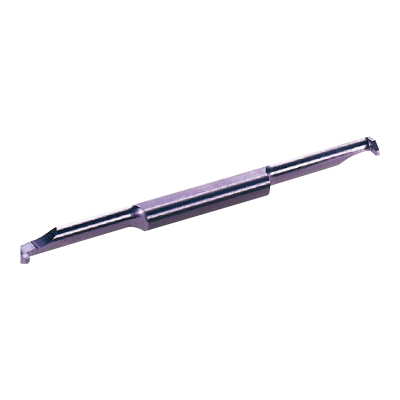

CG0407RS-10B VP15TF
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![M (Stainless)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-M.png?v=180646633914269519611700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
Stock
2
Price
Regular price
$98.15 USD
Regular price
Sale price
$98.15 USD
Unit price
/
per
EDP
493044
ANSI
VP15TF
ISO
CG0407RS-10B VP15TF
![P (Steel)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-P.png?v=100455598971133347731700003449)
![M (Stainless)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-M.png?v=180646633914269519611700003449)
![K (Cast Iron)](http://mmusec.mmc-carbide.com/cdn/shop/t/2/assets/asset-K.png?v=179829309681585967941700003448)
Change the number in sums of 1s.
Couldn't load pickup availability
![CG0407RS-10B VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/TRNPIS_MI_CG_MC_baf3b9ab-a228-45b2-ac71-305b468933a7.png?v=1720779231&width=1445)
![CG0407RS-10B VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/TRNPIS_MI_CG_MC_1_92f43499-c98b-4306-8c15-4b30d676deba.jpg?v=1720779231&width=1445)
- Dimensions
- Features

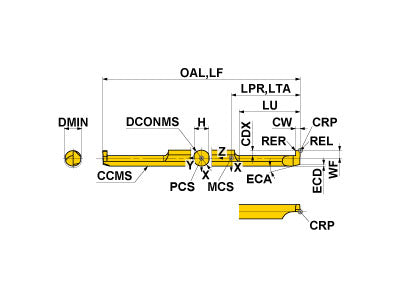

- Drawings
- Technical Information
![CG0407RS-10B VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/TRNPIS_MI_CG_MC_1_92f43499-c98b-4306-8c15-4b30d676deba.jpg?v=1720779231&width=416)
Coolant
External
Hand
Right
Unit: mm
REL
0.05
RER
0.05
CDX
1.5
CW
1
DMIN
4
DCONMS
4
LF
60
LU
7
WF
1.8
H
3.6
![CG0407RS-10B VP15TF](http://mmusec.mmc-carbide.com/cdn/shop/files/TRNPIS_MI_CG_MC_1_92f43499-c98b-4306-8c15-4b30d676deba.jpg?v=1720779231&width=416)
Unit: mm
REL
0.05
RER
0.05
CDX
1.5
CW
1
DMIN
4
DCONMS
4
LF
60
LU
7
WF
1.8
H
3.6
Solid carbide type with 2 cutting edges.
Continuous turning from internal turning to face turning.
Each boring bar comes in two types, with or without breaker.
The minimum cutting dameter is from 2.2mm.
2D Model (DXF)
3D Model (STP)
